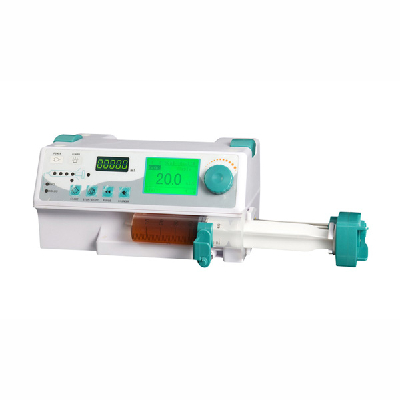

Single channel syringe pump BYZ-810
Features:
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
6. Three levels of occlusion: high, medium and low;
7. Purge and Bolus function;
8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 1ml/h;
9. Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;
10. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;
11. One-key operation makes setup easy and simple;
12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
13. Automatically record the settings of last injection;
14. BYZ-810D can store 2000pcs of injection records and it has a drug library;
15. OEM is available.
- Place of Origin: hunan
- Brand Name: beyong
- Model Number: BYZ-810
Specifications:
Model | BYZ-810 |
Injection Rate | 50(60)ml Syringe 0.1ml/h---999.9ml/h (0.1ml/h step) 1000ml/h---1500ml/h (1ml/h step) |
30ml Syringe 0.1ml/h---900ml/h (0.1ml/h step) | |
20ml Syringe 0.1ml/h---600ml/h (0.1ml/h step) | |
10ml Syringe 0.1ml/h---300ml/h (0.1ml/h step) 5ml syringe 0.1ml/h-100ml/h (0.1ml/h step)
| |
Rate Accuracy | Within±3% (after correct calibration) |
Mechanical Accuracy | Within±2% |
Maximum Stackable | 8pcs |
Purge Rate | 50(60)ml Syringe: 1500ml/h |
30ml Syringe: 900ml/h | |
20ml Syringe: 600ml/h | |
10ml Syringe: 300ml/h 5ml syringe:100ml/h | |
Bolus Rate | 50(60)ml Syringe: 1200ml/h |
30ml Syringe: 720ml/h | |
20ml Syringe: 480ml/h | |
10ml Syringe: 240ml/h 5ml syringe: 100ml/h | |
Volume Limit | 0.1ml---999.9ml (0.1ml step) |
Total Injection | 0.1ml---9999.9ml (0.1ml step) |
Occlusion | High 800mmHg±200mmHg (106.7kPa±26.7kPa) |
Medium 500mmHg±100mmHg (66.7kPa±13.3kPa) | |
Low 300mmHg±100mmHg (40.7kPa±13.3kPa) | |
Audible and Visible Alarms | Injection soon finish, End of injection, Occlusion, Improperly |
Power Source | 100---240Vac, 50/60Hz |
KVO Speed | 0.1~5ml/h (0.1ml/h step) |
Power Consumption | 30VA |
Operation Environment | a) Temperature 5--- 40degree |
b) Humidity 20---90% | |
c) Atmospheric Pressure 86.0KPa---106.0KPa | |
Storage Environment | a) Temperature -30--- 55degree |
b) Humidity ≤95% | |
c) Atmospheric Pressure 50.10KPa---106.0KPa | |
Syringe | Compatible with 10ml, 20ml, 30ml, 50/60ml of any brands |
Dimension | 280mm(L) x 210mm(W) x 130mm(H) |
Net Weight | 2.2Kg |
Package Reference | 1pc Carton: 3.2Kg, 36cm(L) x 29cm(W) x 18cm(H) |
2pcs Carton: 7.2Kg, 39cm(L) x 38cm(W) x 31cm(H) | |
3pcs Carton: 10.7Kg, 58cm(L) x 38cm(W) x 31cm(H) |
