- Place of Origin: hunan
- Brand Name: beyong
- Model Number: BYS-820D

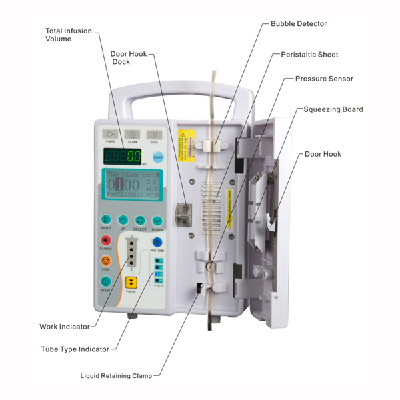

Infusion Pump BYS-820D
Features:
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;
3. Compatible with any brands of infusion sets after correct calibration;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Work mode: ml/h and drop/min can switch freely;
6. Three levels of occlusion: high, middle and low;
7. Purge function;
8. KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 3ml/h;
9. Power Source: AC100---240V, 50/60Hz; Internal Battery;
10. Automatically record the settings of last infusion;
11. BYS-820D can store 2000pcs of infusion records and it has a drug library.
12. OEM is available.
- Place of Origin: hunan
- Brand Name: beyong
- Model Number: BYS-820D
Specifications:
Model | BYS-820 & BYS-820D |
Infusion Rate | 1ml/h---1200ml/h (1ml/h step) |
Purge Rate | 100ml/h---1200ml/h (can be calibrated) |
Rate Accuracy | within±5% (after correct calibration) |
Volume Limit | 0ml---9999ml |
Total Infusion Volume | 0---9999.9ml |
Alarm Pressure | High 800mmHg±200mmHg (106.7kPa±26.7kPa) |
Medium 500mmHg±100mmHg (66.7kPa±13.3kPa) | |
Low 300mmHg±100mmHg (40.7kPa±13.3kPa) | |
Audible and Visible Alarms | End of injection, Occlusion, Door open, Bubbles in the tube, Wrong setting, Low battery, AC power pulled out, etc. |
Power Source | 100---240Vac, 50/60Hz Internal rechargeable Li battery volume≥1,600mAh 4 hours internal battery backup |
Bubble Detector | Ultrasonic wave detector, detection sensitivity ≥25μL |
KVO Speed | 1ml/h---5ml/h (1ml/h step) |
Power Consumption | 30VA |
Operation Environment | Temperature 5--- 40 degree |
Relative Humidity 20---90% | |
Storage Environment | Temperature -30----- 55 degree |
Humidity ≤95% | |
Atmospheric Pressure 50.10KPa---106.0KPa | |
Infusion Set | Compatible with any brands |
Forbidden | Not support blood Infusion |
Dimension | 140mm(L) x 157mm(W) x 220mm(H) |
Net Weight | 1.8kg |
Package Reference | 1pc Carton: 2.8KG, 33cm(L) x 28cm(W) x 26cm(H) |
2pcs Carton: 6.5KG, 52cm(L) x 30cm(W) x 36cm(H) | |
3pcs Carton: 9.6KG, 76cm(L) x 30cm(W) x 36cm(H) | |
